Brand Name : | XQD |
Model Number : | XQD-S50 |
Certification : | CE, RoHS, FCC |
Price : | $1.00/pieces 1000-1999 pieces |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 10 work days |
Supply Ability : | 50000PCS/Day |

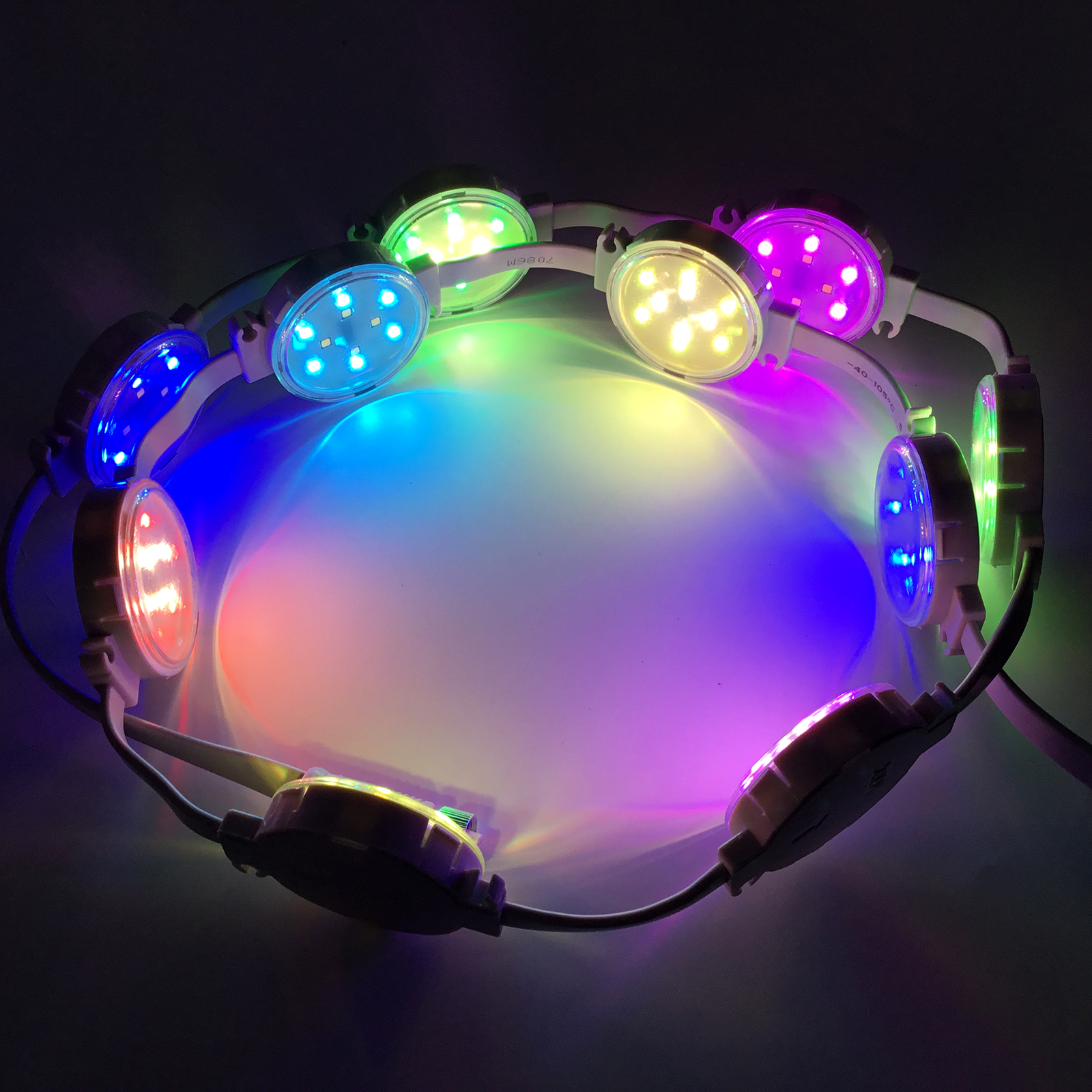

Pixel Light rgb Led Pixels controller and pixel light for facade LED point light source
Product basic parameters | Product protection parameters | |||
Model | XQD-S50 | Waterproof grade | IP65 | |
size | Φ49.8mm*14.1mm | Flame retardant | V-0 | |
Application environment | Indoor and outdoor | UV resistance level | 4 | |
Product unit weight | about 39.4g | Salt spray test | Salt spray resistance | |
Shell material | PC | Impact resistance | IK10 | |
Maximum number of connections | 80PCS/string | Electrical safety grade | Ⅲ class | |
Center distance | min 9CM | Safety certification | CE FCC RoHS | |
Average lifespan | 50000 hours | Operating temperature | -40℃-55℃ | |
Wire core | 2x0.75mm2+3x0.3mm2 | Working voltage | DC24V | |
Wire material | PVC | Rated power | 1.44W | |
PCB material | FR-4 glass fiber board | Control system | DMX512 | |
Product optical parameters | Power system | DC24V constant voltage | ||
LED color | RGB | |||
Luminous angle | 120° | Luminous flux of pixel point | 48lm | |
Color Resolution | 3*16bit | Luminous brightness | 18.8cd | |
Lamp beads | SMD3535*7LED |
ShenZhen XinQiDan Optoelectronic CO.,LTD.
Specializing in providing professional lighting solutions for a
variety of outdoor places, including but not limited to commercial
squares, parks, scenic spots, building facades, Bridges, roads,
etc.
![]() |
