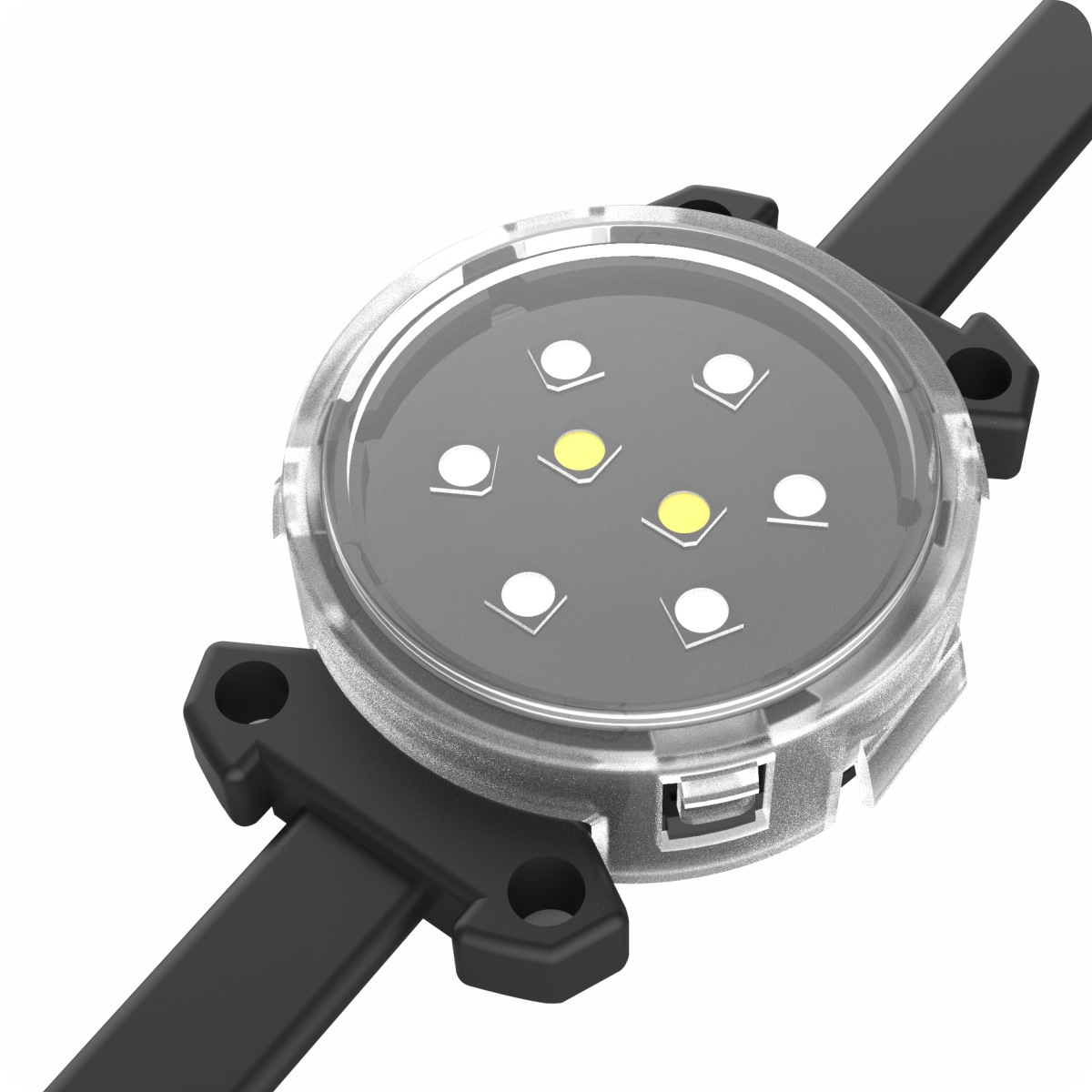

XR40 point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XR40-RGB | Waterproof grade | IP67 |
| Product size | Φ40mm*15mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About31g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 8CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*6LED | Control system | DMX512 |
| Pixel point luminous flux | 40.52Lm | Power supply system | DC24V Constant voltage |
| luminance | 12-12.5cd | ||
Applications:
Building facades: Use point light sources to illuminate the facades
or specific structures of buildings to create a unique night view
effect.
Building signs: Install a point light source on the building signs
to make the signs more eye-catching at night.
Commercial pedestrian street: Use point light sources on billboards
and decorations in the pedestrian street to create a bustling
commercial atmosphere.
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
