Shenzhen Xinqidian Photo-Electric Co.,Ltd. Let light illuminate the world
1 Years
| Ask Lasest Price | |
| Brand Name : | XQD |
| Model Number : | XQD-DZ104-I |
| Supply Ability : | 50000PCS/Day |
| Price : | $1.10/pieces 1000-49999 pieces |
| Certification : | CE, RoHS, FCC |
| Delivery Time : | 10 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

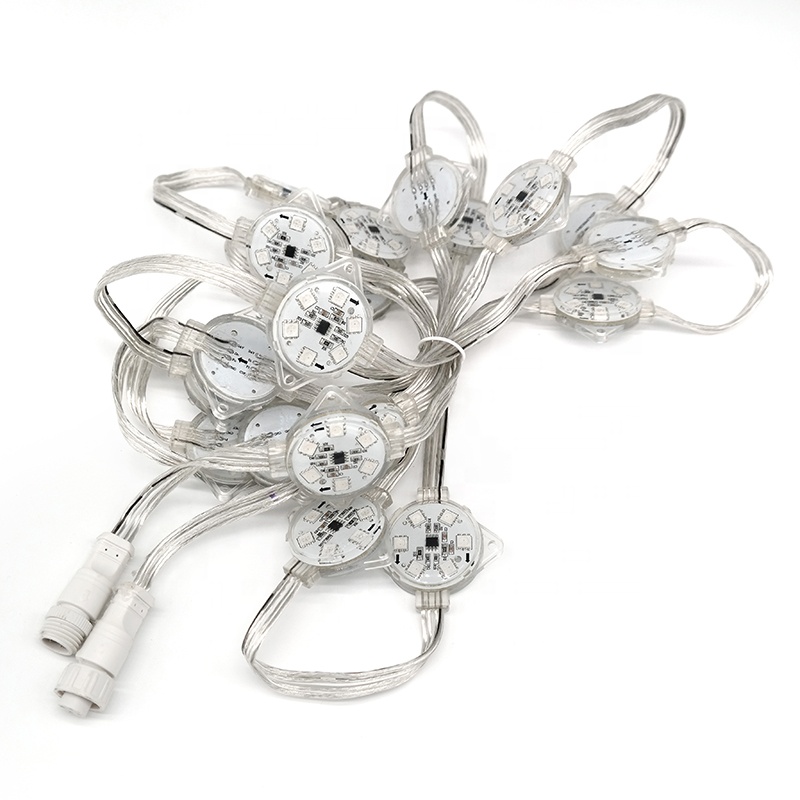

Building Project Customization Led Pixel Point Light RGB Control High Bright
Product features:
Building facade lighting: Point light sources can be used to
illuminate the building facade around the square, creating a
dynamic or static lighting effect through a carefully designed
distribution of light points to enhance the visual effect of the
building at night.
Signboards and billboard lighting: Point light sources can be used
to illuminate shop signs and billboards in commercial plazas,
making them more eye-catching at night and attracting customers'
attention.
40 Technical parameters of injection point light source
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-DZ104-Ⅰ | Waterproof grade | IP66 |
| Product size | Φ40mm*10mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About23g | Salt spray test | Salt spray resistance |
| Shell material | PVC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 7CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+2x0.35mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*8bit | Supporting system | |
| Lamp bead | SMD5050*6LED | Control system | DMX512 |
Applications:
Choose the right intelligent control system:
Type: Select the appropriate control system according to your
requirements, such as DMX512, DALI, Zigbee, Wi-Fi or Bluetooth
based control systems.
Function: Consider whether the system supports advanced functions
such as timing control, brightness adjustment, color change, and
scene presetting.
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
Setting Information | ||
Item No | XQD-DZ104 | |
rated voltage | 24V | |
material | 1.44W | |
light color | FC/single | |
installation | embedded | |
view angle | 120deree | |
Diameter | 40MM | |
Shelf life | 3Years | |
