| Brand Name : | XQD |
| Certification : | CE, RoHS, FCC |
| Price : | $0.64 - $0.93/pieces |
| Model Number : | xr30/40/50 |
| Delivery Time : | 10 work days |
| Supply Ability : | 50000PCS/Day |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
XR50 RGB DMX Outdoor LED Pixel Light Sample for Lighting and Circuitry Design
led point lighting source emitting aluminum track chips RGB
Product features:
Street Lighting:
Street lamp decoration: Point light source can be used for street
lamp decoration, through the change of different colors and
patterns, to add beauty to the street.
Road signs: Use point light sources as road signs, such as
crosswalks, turn signs, etc., to improve the safety of drivers and
pedestrians.
The outline of the building:
Building edge lighting: Point light sources can outline the outline
of the building, especially at night, to highlight the structural
beauty of the building.
Lighting for historic buildings: For historic buildings and iconic
buildings, the use of point lighting can highlight their unique
architectural style
XR50 point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-XR50-RGB | Waterproof grade | IP67 |
| Product size | Φ50mm*15mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About44.5g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 9CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm²+3x0.3mm² | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC24V |
| Luminous Angle | 120° | Rated power | 1.44W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*6 | Control system | DMX512 |
| luminance | 12-12.5cd | ||

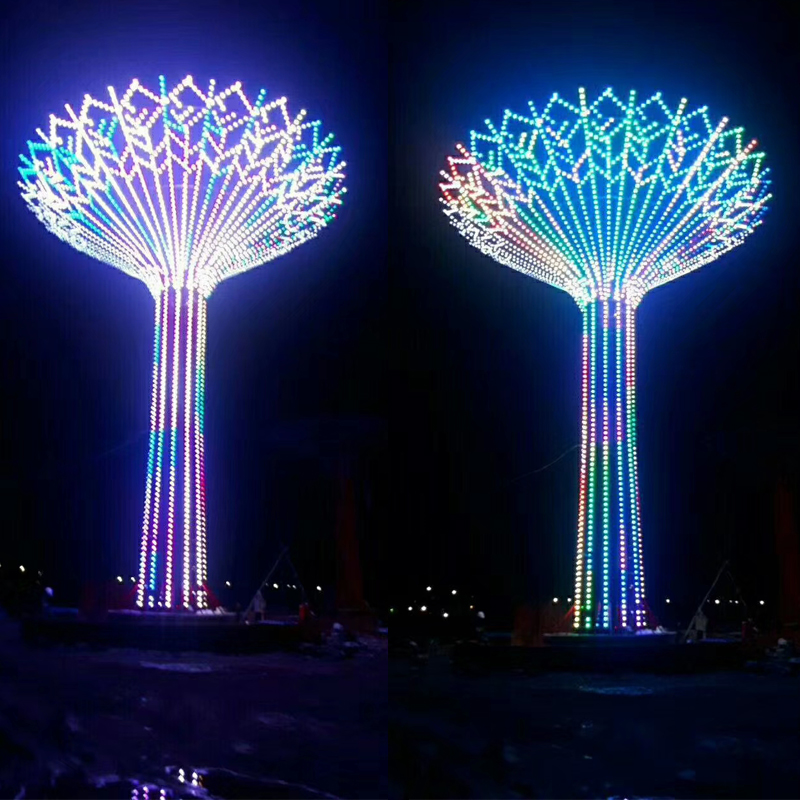

Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
Information | ||
Item No | XQD-XR50 | |
Voltage | 24V | |
Power | 1.44W/1.92W | |
light color | full color/RGB | |
installation | embedded | |
View angle | 140 degree | |
Hole diameter | Ø40mm*H14.5mm | |
Shelf life | 3 years | |
1.View angle:90-180degree
2.Energy efficient,major reduction in power costs
3.Easily installation and maintenance free
4.High visual impact and excellent brightness
