    5040 point light source Square waterproof building street lighting

    Ask Lasest Price
    Brand Name : XQD
    Model Number : 5040 point light source
    Certification : CE, RoHS, FCC
    Price : $0.57 - $0.86/PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/Day
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    5040 point light source Square waterproof building street lighting

    5040 point light source Square waterproof building street lighting LED point light source


    Product features:

    Low emitted heat
    120º beam projection
    Up to 70% energy savings
    50w power consumption
    IP68 Ingress protection
    CE, RoHS, TUV, UL compliant
    3 Year Warranty


    1. Adopting a front fully sealed adhesive structure, with good heat dissipation performance and high protection level;
    2. Using outdoor waterproof light beads, with pure color and stable performance;
    3. Dustproof and UV resistant material face mask, small in size, exquisite in appearance, suitable for indoor and outdoor use;
    4. Suitable for large and medium-sized advertising signs, as well as large area displays on building facades,

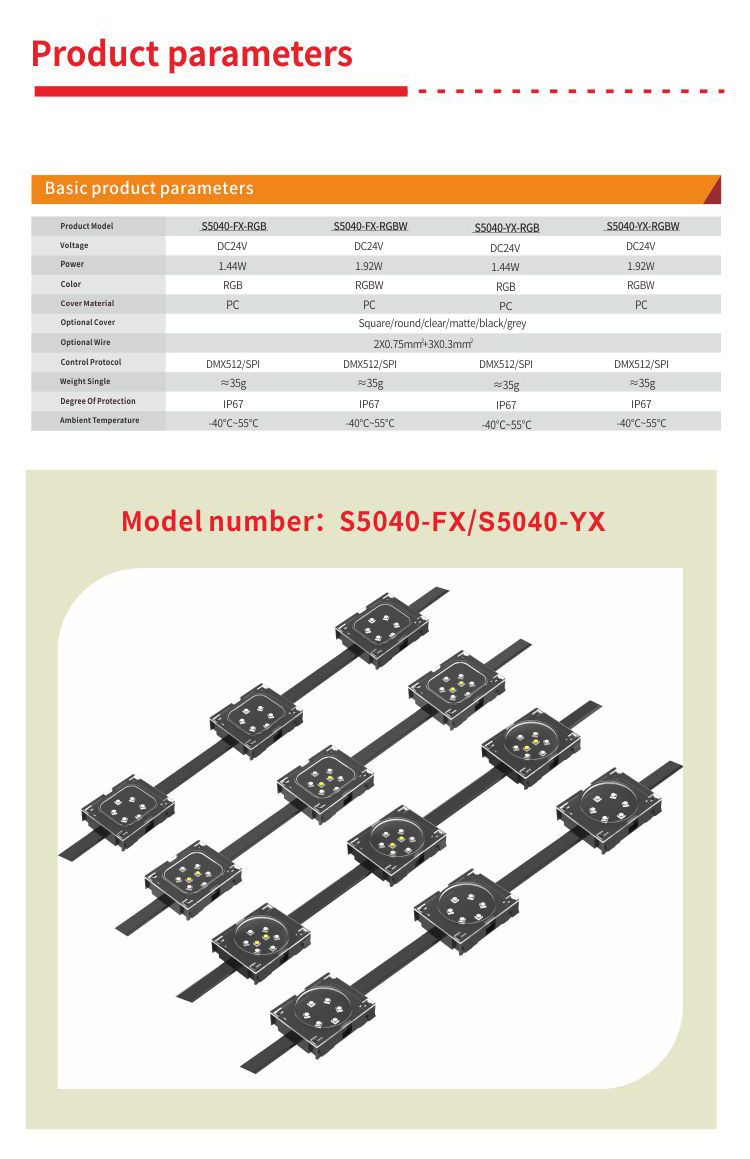

    Basic product parametersProduct protection parameter
    Product model5040 LED point lighWaterproof gradeIP67
    Product size

    50mm*40mm*13.6mm

    Shell flame retardantV-0
    Application environmentIndoor and outdoorUV resistance grade4
    Product weightAbout35gSalt spray testSalt spray resistance
    Shell materialPCImpact resistanceIK10
    Maximum number of connections100PCS/stringElectrical safety classⅢ class
    Center distanceMinimum 10CMSafety certificationCE FCC ROHS
    Average product life50,000 hoursOperating temperature-40℃-55℃
    Optional accessoriesAluminum groove, steel wire buckle
    Wire core2x0.75mm²+3x0.3mm²
    Wire materialPVC
    PCB materialFR-4 Fiberglass board
    Product optical parametersElectrical parameters of the product
    LED colorRGBWOperating voltageDC24V
    Luminous Angle120°Rated power1.92W
    Color resolution3*16bitSupporting system
    Lamp beadSMD3535*6+2LEDControl systemDMX512
    Pixel point luminous flux68 LMPower supply systemDC24V Constant voltage
    luminance21.2-21.8 cd

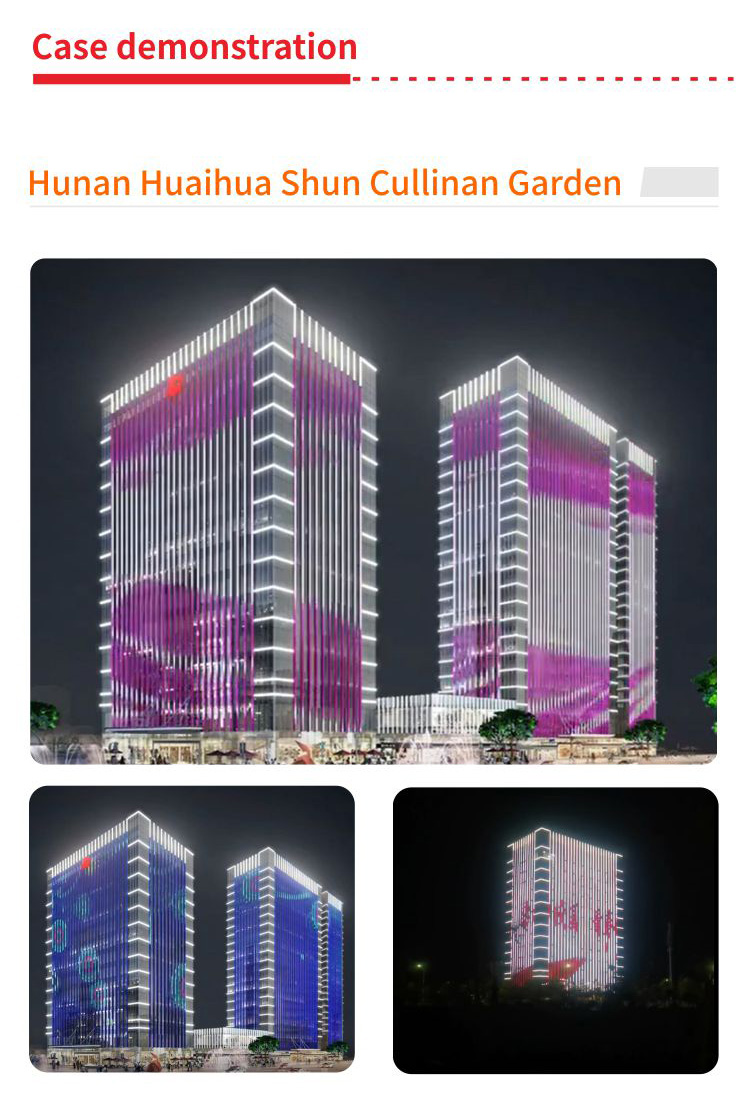

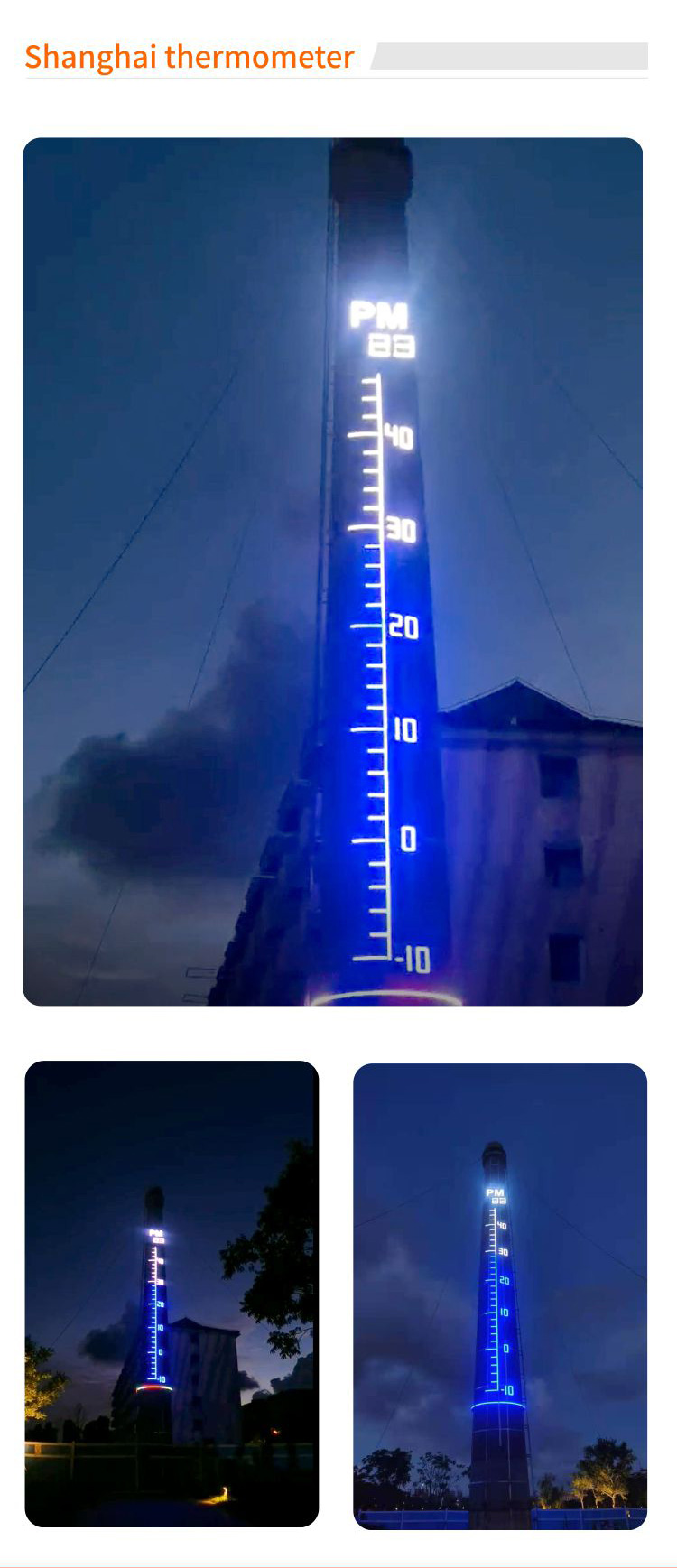

    Applications:
    Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots,

    building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,

    shopping malls, supermarkets, kitchen, display, backlight and so on.
