LED point light outdoor waterproof 24W IP68 advertising decoration lighting lamp
Product features:
Flexibility and plasticity:
It can be cut into different lengths and shapes according to design
requirements to adapt to different installation scenarios.
Installation method:
It is easy to install and can be installed by bonding, fixing clip
or suspension.
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-PG55-RGBW-24V | Waterproof grade | IP67 |
| Product size | 65mm*60mm*15.2mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About64.8g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 80PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 12CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x1.0mm2+3x0.3mm2 | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGBW | Operating voltage | DC24V |
| Luminous Angle | 90°(上30下60 | Rated power | 1.92W |
| Color resolution | 3*16bit | Supporting system | |
| Lamp bead | SMD3535*6+3LED | Control system | DMX512 |
| Pixel point luminous flux | 89 LM | Power supply system | DC24V Constant voltage |
| luminance | 25-27cd | ||

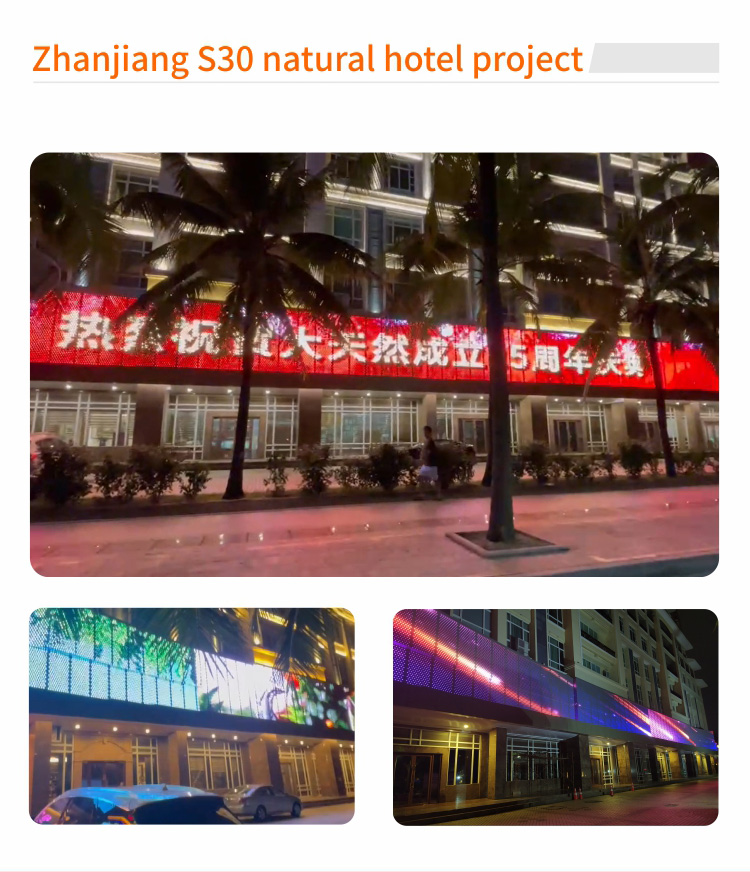

Applications:
It is widely used in architectural contour lighting, interior decoration lighting, commercial advertising lighting, outdoor landscape lighting and other fields.
|
|
