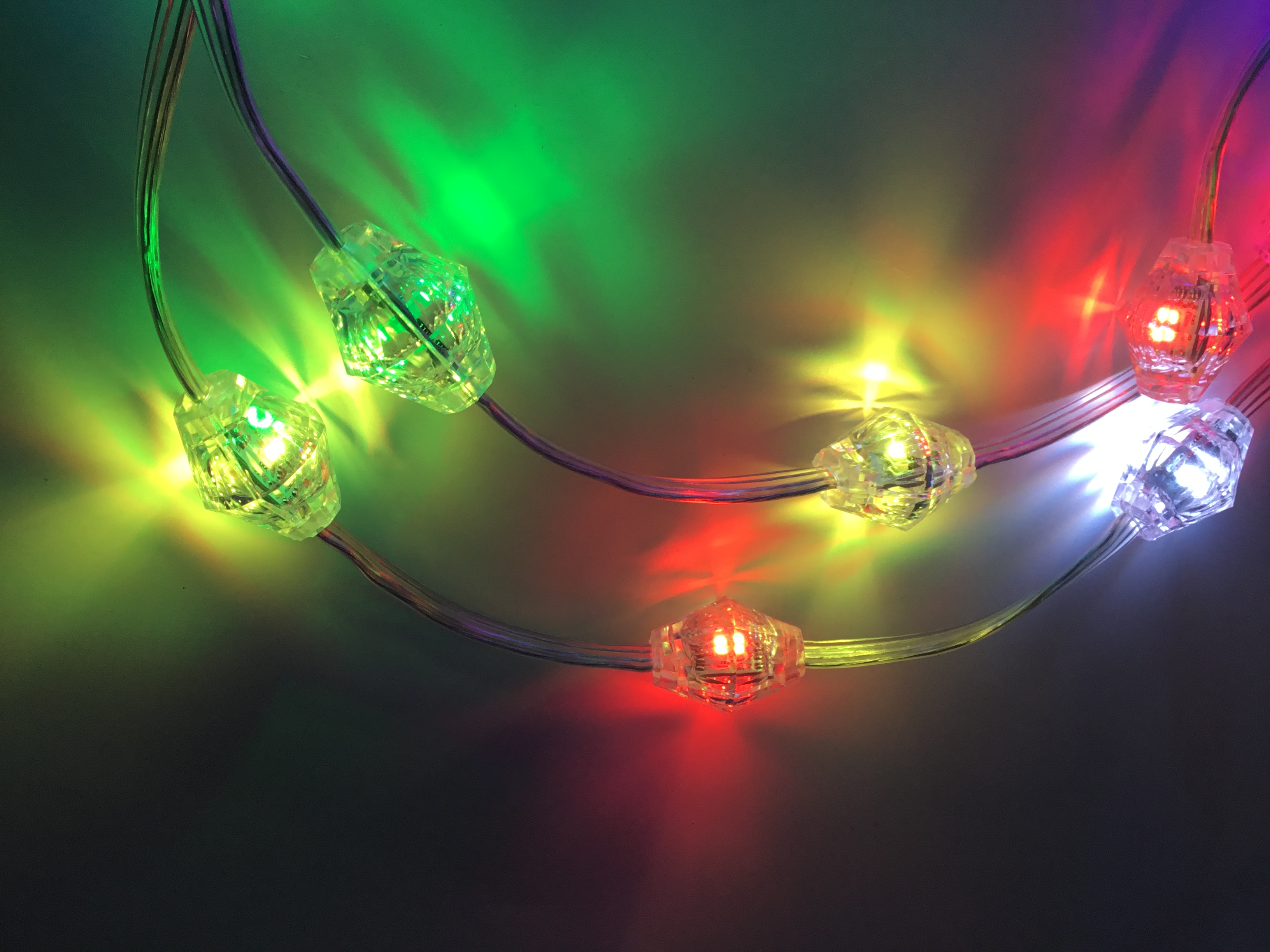

Color Temperature of 5000K Daylight and 3D LED Pixel Light for 3D Crystal Pendant Lamp
The main products included mesh screen , 3D LED Light,Transparent screen, secondary packaging point light, LED point light, Linear light,Flip Dot module, Eaves Light.The product is widely used in building lighting, bridge lighting, landscape lighting, art engineering lighting and other engineering projects. The controller series includes voice control controllers, interactive controllers, and conventional disconnect control.
Service concept: Technology adheres to customer-centric, providing a full range of services, including project consulting, program design, product supply, installation guidance, after-sales maintenance, etc.
Corporate vision: To become the world's leading LED product supplier and lighting solution provider, promote the development of LED industry, and create a green, intelligent and beautiful lighting environment.
Basic product parameters | Product protection parameter | |||
Product model | 3D-LXZS | Waterproofing class | IP66 | |
Product size | 29mm*15mm*9.7mm | Case flame retardant | V-0 | |
Application environment | outdoor | UV resistance grade | 4 | |
Single weight of product | About 10.5g | Salt spray test | Salt spray resistance | |
Shell material | PC material | Impact resistance | IK10 | |
Maximum number of connections | 100PCS/ string | Electrical safety class | Class III | |
Center spacing | Minimum 5CM±0.5mm | Security authentication | CE FCC RoHs | |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ | |
Optional accessories | T-terminal/Crystal Pendant | Tensile strength | ≤7.5kg | |
Wire core | 4x0.25mm² | Instant tensile strength | ≤35kg | |
Wire material | PVC | |||
PCB material | FR-4 glass fiber board | |||
Product optical parameters | Electrical parameters of the product | |||
LED color | RGB | Operating voltage | DC12V | |
Luminous Angle | 360° | Rated power | 0.72W | |
Color resolution | 3x8bit | Supporting system | ||
Lamp bead package | SMD 3535*2LED | Control system | SPI | |
Pixel point luminous flux | 12lm | Power supply system | DC12V | |
brightness | 4cd | |||
|
|
