    Customized Flexible LED Pixel Screen for Outdoor Building Background

    Ask Lasest Price
    Model Number : XQD--2020
    Brand Name : XQD
    Supply Ability : 50000PCS/Day
    Price : $208.00/square meters 1000-9999 square meters
    Certification : CE, RoHS, FCC
    Delivery Time : 10 work days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Customized Flexible LED Pixel Screen for Outdoor Building Background

    Customized Outdoor Waterproof LED Point Light Customized Outdo LED mesh screen


    Product feature
    Regular maintenance: Regular maintenance of the grid screen, including cleaning the screen surface, checking the operating status of the line and control system, and timely replacement of the damaged LED module to ensure the continuity of the display effect.

    Appropriate brightness and contrast Settings: Adjust the brightness and contrast of the grid screen according to different time periods and environmental conditions to ensure the best visual effects during the day and night.
    It has breakpoint continuous transmission function, even if one pixel is damaged, it will not affect the subsequent pixel
    Signal reception to minimize product failure rate. 5. Multiple spacing options to flexibly control project costs.
    Products Description
    Basic product parameters
    Product protection parameters
    Product model
    XQD-2020
    Waterproof grade
    IP65
    Product size
    Φ 20mm*14.5mm
    Enclosure flame resistance
    V-0
    Application environment
    Indoor and outdoor
    UV resistance grade
    4
    Product unit weight
    About 5.7g
    Salt spray test
    Salt fog resistance
    Shell material
    PC
    Impact resistance
    IK10
    Maximum number of connections
    100 PCS/string
    Electrical safety level
    Class III
    Center spacing
    Minimum 5cm
    Safety certification
    CE FCC RoHS
    Average product life
    50000 hours
    working temperature
    -40℃-55℃
    Optional Accessories
    Steel wire clamp
    Wire core
    4x0.25mm ²
    Wire material
    PVC
    PCB material
    FR-4 glass fiber board
    Product optical parameters
    Product electrical parameters
    LED color
    RGB
    Working voltage
    DC12V
    Luminous angle
    120°
    Rated power
    0.2W
    Color resolution
    3*8bit
    Lamp beads
    SMD5050*1LED
    Auxiliary system
    Pixel luminous flux
    7.9 LM
    Control system
    SPI
    Luminance
    2.2-2.5cd
    Power supply system
    DC12V constant voltage

    Specifications
    Customized Flexible LED Pixel Screen for Outdoor Building Background


    Dimension
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Company information
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    XQD
    Shenzhen XQD Co., Ltd., founded in February 2010, Has many years of technical accumulation and engineering case experience.
    Main products include LED line light, LED point light source, LED wall wash light, LED floodlight and so on.
    Focus on landscape lighting projects.
    Factory
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background

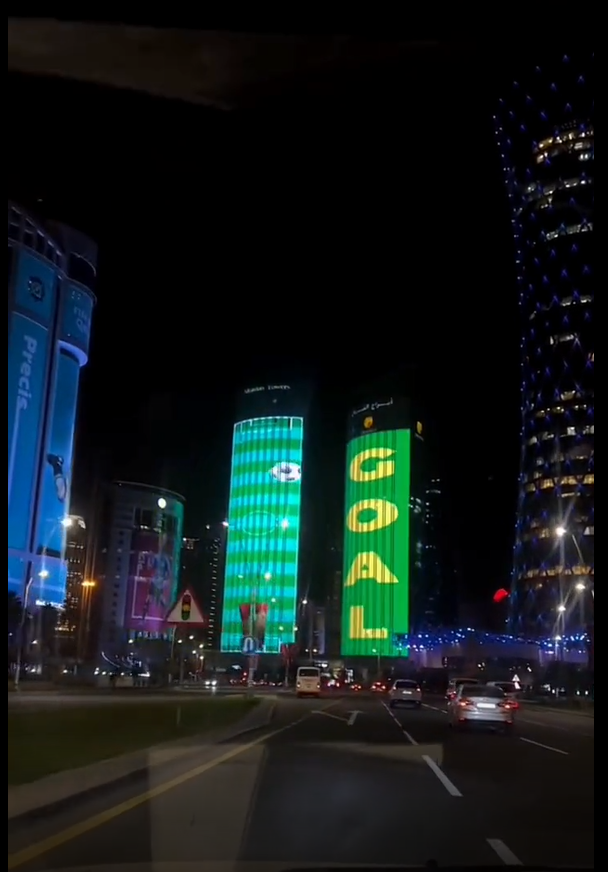

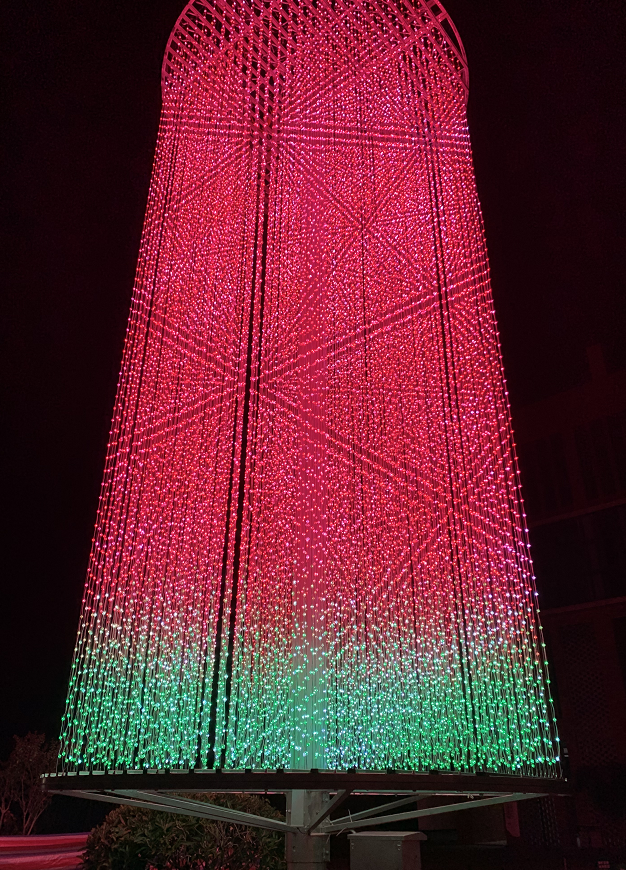

    Customer Photos
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Certificates
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    Customized Flexible LED Pixel Screen for Outdoor Building Background
    FAQ
    Q1. Can I order samples of led lamps? A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
    Q2. How about the delivery date? A: The sample takes 3-5 days, the batch production takes 1-2 weeks, and the order quantity exceeds
    Q3. Do you have a minimum order limit for LED lights? A: The minimum order quantity is low, and one sample can be provided for inspection
    Q4. How do you ship the goods and how long will it take to arrive? A: We usually ship through DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air and sea transportation are also optional.
    Q5. How to order led lamps? A: First let us understand your requirements or applications. Secondly, we quote according to your requirements or our suggestions. Third, the customer confirms the sample and submits the deposit for formal order. Fourth, we arrange production.
    Q6. Can I print my logo on the led lamp product? A: Yes. Please inform us formally before our production and confirm the design first according to our samples.
