Brand Name : | XQD |
Model Number : | 50 Two Packaging Points Light |
Certification : | CE, RoHS, FCC |
Price : | $0.71 - $0.93/PCS |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 10 work days |
Supply Ability : | 50000PCS/Day |
50Two Packaging -Thicker High Brightness Waterproof Building LED
Point Light
Product features:
Technical advantages: Advanced production technology, such as CNC
assembly line equipment, is used to ensure the consistency of
product quality. Its waterproof performance is extremely high, the
protection level can reach IP68, and it can be used in harsh
environments such as underwater and underground. In addition, the
secondary sealing decorative light source also has a flame
retardant level of FV-0, the use of UV resistant packaging
materials, can be used outdoors for many years without cracking.
The ultra-thin and transparent design makes it have little impact
on the building during the day after installation, and even can be
used as a decoration when the installation is reasonable, giving
the building artistic effect
Basic product parameters | Product protection parameter | ||
Product model | XQD-DZ105-Ⅰ | Waterproof grade | IP66 |
Product size | Φ50mm*10mm | Shell flame retardant | V-0 |
Shell material | PVC | Impact resistance | IK10 |
Maximum number of connections | 80PCS/string | Electrical safety class | Ⅲ class |
Center distance | Minimum 9CM | Safety certification | CE FCC ROHS |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
Optional accessories | Aluminum groove, steel wire buckle | ||
Wire core | 2x0.75mm²+3x0.35mm² | ||
Wire material | PVC | ||
PCB material | FR-4 Fiberglass board | ||
Product optical parameters | Electrical parameters of the product | ||
LED color | RGB | Operating voltage | DC24V |
Luminous Angle | 120° | Rated power | 1.44W |
Color resolution | 3*16bit | Supporting system | |
Lamp bead | SMD5050*7LED | Control system | DMX512 |
Pixel point luminous flux | 63.3lm | Power supply system | DC24V Constant voltage |
luminance | 22.3cd |
Applications:

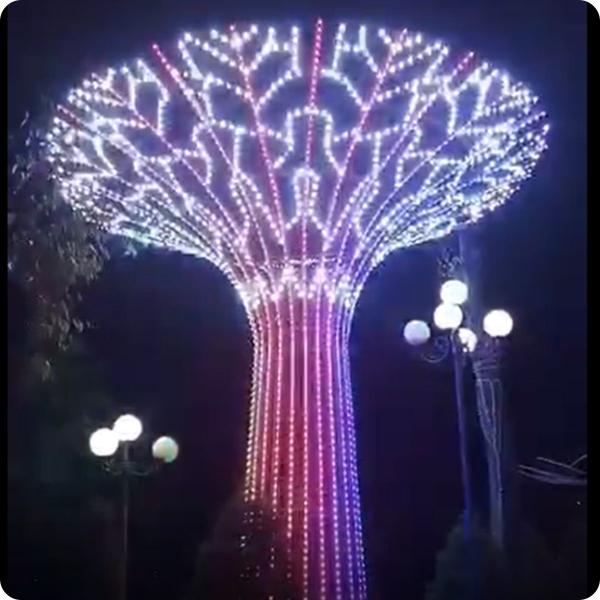

Night lighting: secondary sealing decorative light source has
become the mainstream product of outdoor night lighting, widely
used in a variety of night lighting projects. Its high protection
level and stable performance make it capable of long-term stable
operation in harsh outdoor environments
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
50 Description of technical parameters of secondary seal point
light source
Basic product parameters | Product protection parameter | ||
Product model | XQD-DZ105-Ⅱ-RGBW | Waterproof grade | IP67 |
Product size | Φ50mm*14mm | Shell flame retardant | V-0 |
Application environment | Indoor and outdoor | UV resistance grade | 4 |
Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
Center distance | Minimum 9CM | Safety certification | CE FCC ROHS |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
Optional accessories | Aluminum groove, steel wire buckle | ||
Wire core | 2x1mm²+3x0.35mm² | ||
Wire material | PVC | ||
PCB material | FR-4 Fiberglass board | ||
Product optical parameters | Electrical parameters of the product | ||
LED color | RGB+W | Operating voltage | DC24V |
Luminous Angle | 120° | Rated power | 1.92W |
Color resolution | 3*16bit | Supporting system | |
Lamp bead | SMD5050*6LED+SMD3535*4LED | Control system | DMX512 |
Pixel point luminous flux | 65.4lm | Power supply system | DC24V Constant voltage |
luminance | 24.5cd |
![]() |
