Brand Name : | XQD |
Model Number : | 50 Two Packaging Points Light |
Certification : | CE, RoHS, FCC |
Price : | $1.0 - $1.21/PCS |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 10 work days |
Supply Ability : | 50000PCS/Day |

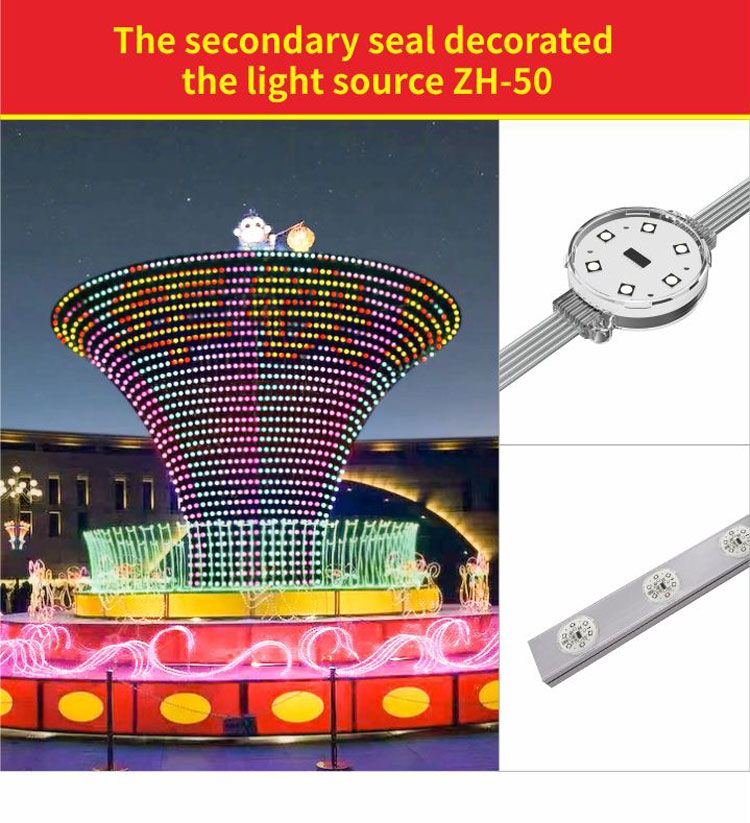

50TwoPackaging Thicker Antioxidant Outdoor Lighting Point Light
Product features:
Enhanced weather resistance: The outdoor environment is changeable,
and the secondary packaging can improve the resistance of the point
light source to harsh environments such as ultraviolet, high
temperature and low temperature.
Improve installation convenience: Secondary packaging can integrate
more functions, such as built-in drivers, fast connectors, etc.,
simplifying the installation process and reducing installation
costs.
Customized design: The secondary packaging can customize the size,
shape, color and brightness of the point light source according to
the specific application requirements to meet the lighting needs of
different scenes.
Reduce light decay: By optimizing packaging materials and
processes, you can slow down the light decay rate of LED point
light sources and maintain long-term stable lighting effects.
Basic product parameters | Product protection parameter | ||
Product model | DZ105-Ⅰ | Waterproof grade | IP67 |
Product size | Φ50mm*11.4mm | Shell flame retardant | V-0 |
Application environment | Indoor and outdoor | UV resistance grade | 4 |
Product weight | About10.7g | Salt spray test | Salt spray resistance |
Shell material | PVC | Impact resistance | IK10 |
Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
Center distance | Minimum 5CM | Safety certification | CE FCC ROHS |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
Optional accessories | Aluminum groove, steel wire buckle | ||
Wire core | 4x0.25mm² | ||
Wire material | PVC | ||
PCB material | FR-4 Fiberglass board | ||
Product optical parameters | Electrical parameters of the product | ||
LED color | RGB | Operating voltage | DC24V |
Luminous Angle | 120° | Rated power | 1.92W |
Color resolution | 3*16bit | Supporting system | |
Lamp bead | SMD5050*1LED | Control system | DMX512 |
Pixel point luminous flux | 5.9lm | Power supply system | DC12V Constant voltage |
luminance | 8.2cd |
Applications:

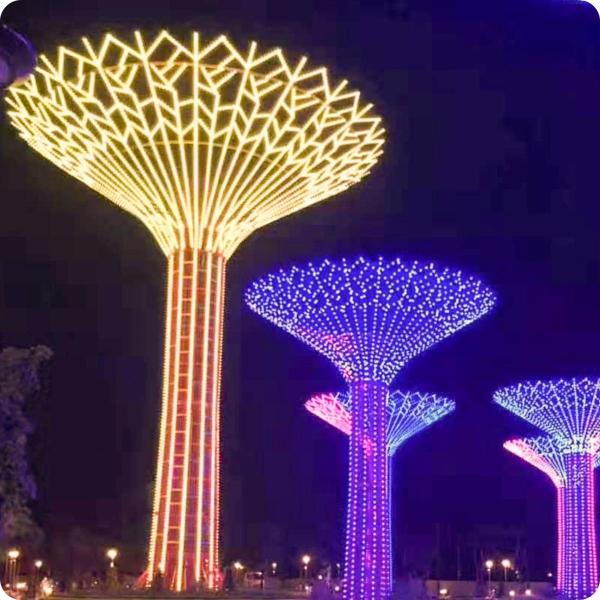

Landscape lighting
Lawns, flower beds, fountains, pools: The combination of point
light sources of different colors and brightness can create dynamic
or static lighting effects for these natural elements, enhancing
the beauty and attractiveness of the nighttime landscape.
Trees and landscape stones: The use of point light sources can
highlight the shape and texture of trees and landscape stones,
creating a mysterious or warm atmosphere.

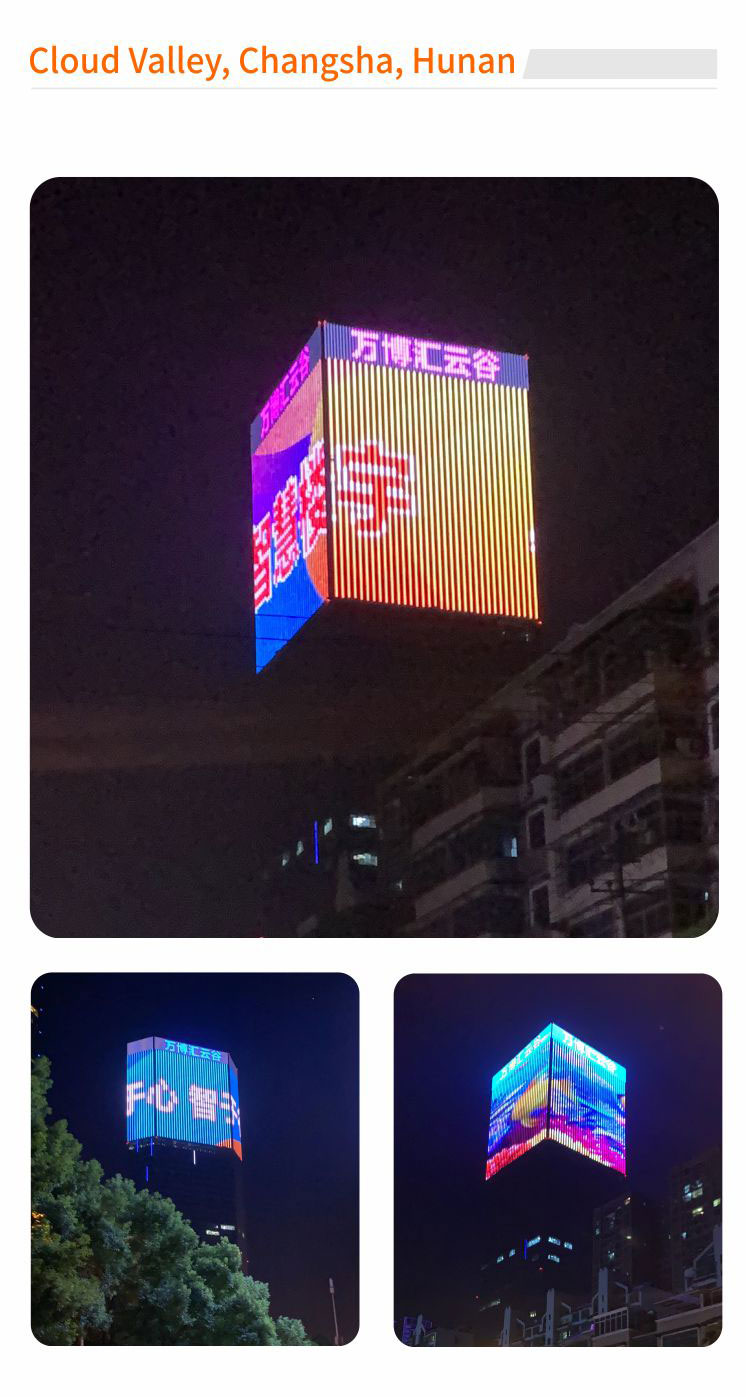

Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotel,
meeting room, offices , hospital , schools , factories , commercial
lighting , shopping malls, supermarkets, kitchen, display,
backlight and so on.
![]() |
