Brand Name : | XQD |
Model Number : | 20 Two Package Potal Light |
Certification : | CE, RoHS, FCC |
Price : | $35.00 - $351.00/square meters |
Delivery Time : | 10 work days |
Supply Ability : | 50000PCS/Day |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
20 Two LED Package Point Light Waterproof Street Bridge Building Lighting
Product features:
Urban night landscape planning
Special planning of urban night scene: With the development of
urban construction, many cities begin to pay attention to the
planning of night scene lighting, the use of point light source can
achieve the beautification of urban night scene and enhance the
image of the city.
Lighting of parks, rivers and squares
Beauty makeup: Point light sources can be used to brighten parks,
rivers, squares and other places to increase the aesthetics and
functionality of these public Spaces.

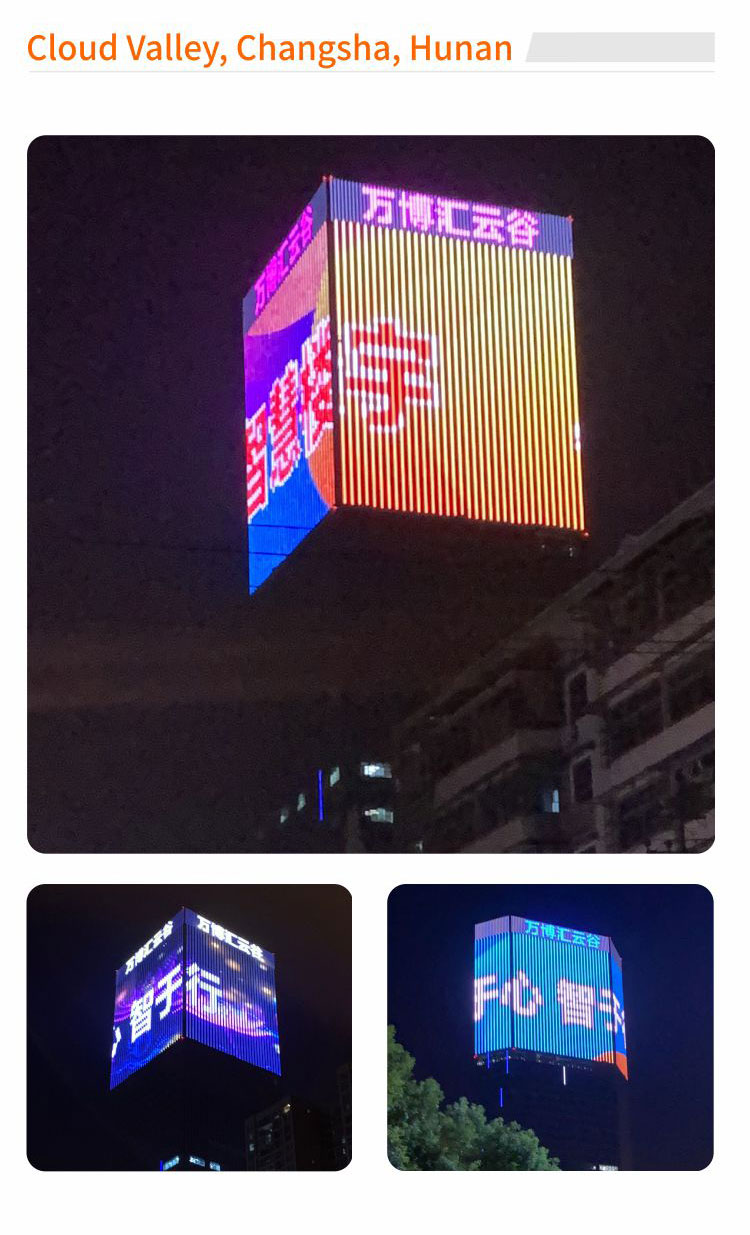

Large area roof lattice screen
Wall lighting: Point light sources are widely used to make
large-area dot-matrix screens on the roof, and the wall lighting of
the facade of the building adds vitality to the building through
dynamic lighting effects.
Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots,
building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,
shopping malls, supermarkets, kitchen, display, backlight and so on.
Basic product parameters | Product protection parameter | ||
Product model | XQD-DZ102-Ⅰ | Waterproof grade | IP66 |
Product size | Φ29.8mm*10.5mm | Shell flame retardant | V-0 |
Application environment | Indoor and outdoor | UV resistance grade | 4 |
Product weight | About12g | Salt spray test | Salt spray resistance |
Shell material | PVC | Impact resistance | IK10 |
Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
Optional accessories | Aluminum groove, steel wire buckle | ||
Wire core | 2x0.75mm²+3x0.35mm² | ||
Wire material | PVC | ||
PCB material | FR-4 Fiberglass board | ||
Product optical parameters | Electrical parameters of the product | ||
LED color | RGB | Operating voltage | DC12V |
Luminous Angle | 120° | Rated power | 0.72W |
Color resolution | 3*8bit | Supporting system | |
Lamp bead | SMD5050*3LED | Control system | DMX512 |
Pixel point luminous flux | 21.8lm | Power supply system | DC12V Constant voltage |
![]() |
