2. The product is small in size and exquisite in appearance;
3. High-quality flame retardant rubber, UV resistance, weather resistance;
4.Suitable for 3D modeling lights, net red hall, KTV decoration, supermarket 3D screen, hotel decoration, APP dot matrix 3D interactive screen
5. Can cooperate with professional interactive system to achieve mobile APP
Installation method:
1. Punch suspension

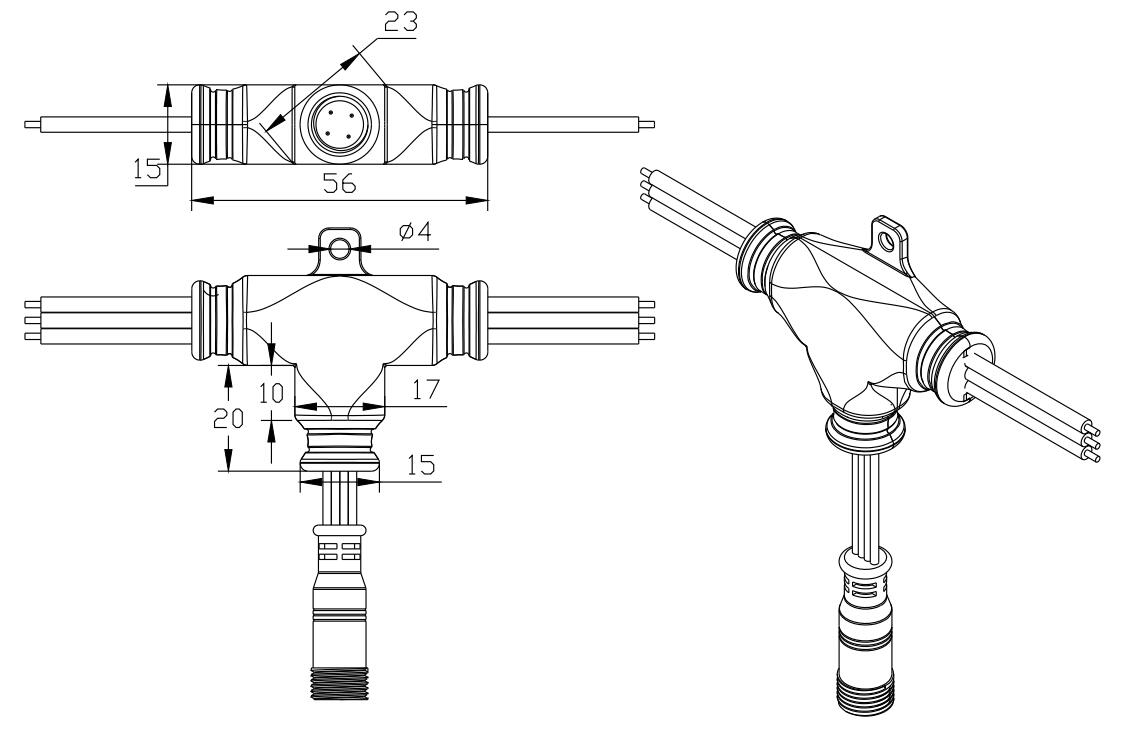

2. With T-type terminal
Product Paramenters
Product basic parameters | Product optical parameters | ||
Product model | XQD-3D-MND | LED color | RGB |

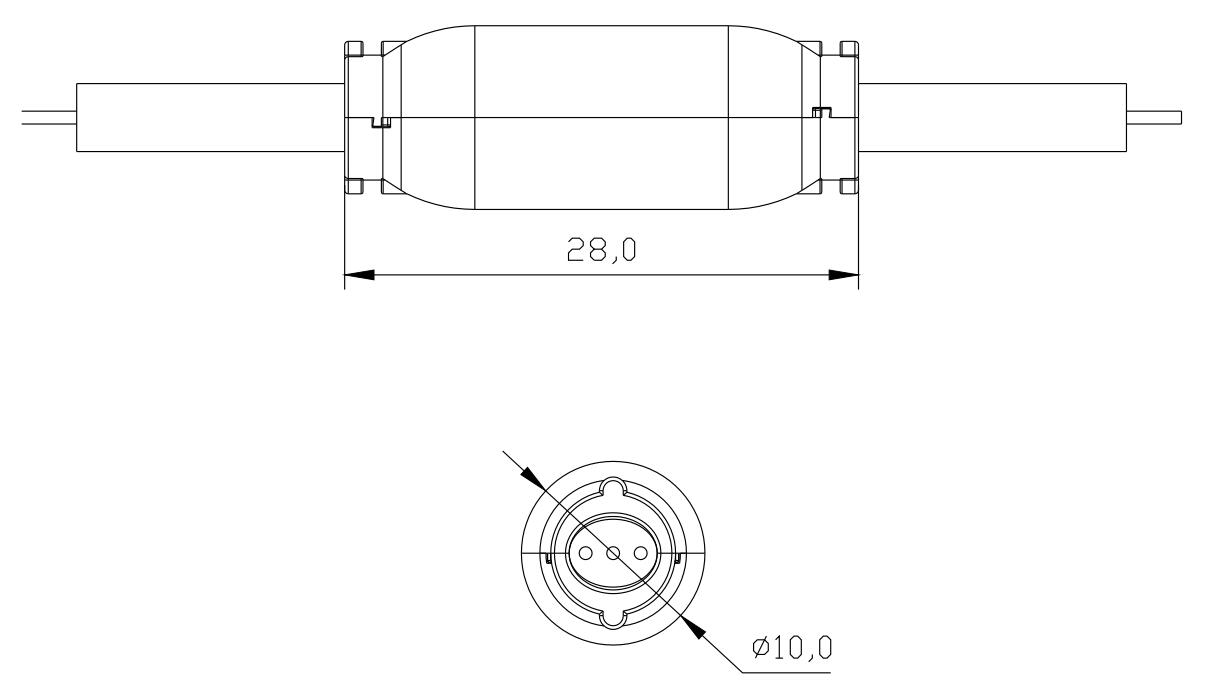

Product size | Φ10mm*28mm | Beam angle | 360° |
Application environment | Indoor | Color resolution | 3*8bit |
Product weight | ≈3g | Lamp beads | SMD 3535*2 LED |
Shell material | PC | LED chip | CREE OSRAM EPISTAR |
Maximum number | 84PCS/string | Pixel luminous flux | 11.2 lm |
Center distance | Min 5CM±0.5mm | Brightness | 3.6 cd |
Product life expectancy | 50000 hours | Product protection parameters | |
Optional accessories | T-type terminal / crystal pendant | waterproof level | IP44 |
Wire core | 3x0.248mm² | Shell flame retardancy | V-0 |
Wire material | PVC | UV resistance level | 4 |
Product electrical parameters | Salt spray test | Salt spray resistance | |
Operating Voltage | DC24V | Impact resistance | IK10 |
rated power | 0.72W | Electrical safety level | Ⅲ类 |
Supporting system | safety certificate | CE FCC RoHs | |
Control System | SPI | Operating temperature | -40℃-55℃ |
Power Systems | DC24V |
